Hot dipped Galvanized / PVC/ PE Coated Barbed Wire in IOWA type, with 2 strands, 4 points. Barbs' distance 3-6 inches ( Tolerance +- 1/2" ).
Galvanized Barbed Iron Wire is suitable for industry, agriculture, animal husbandry, dwelling house, plantation or fencing.

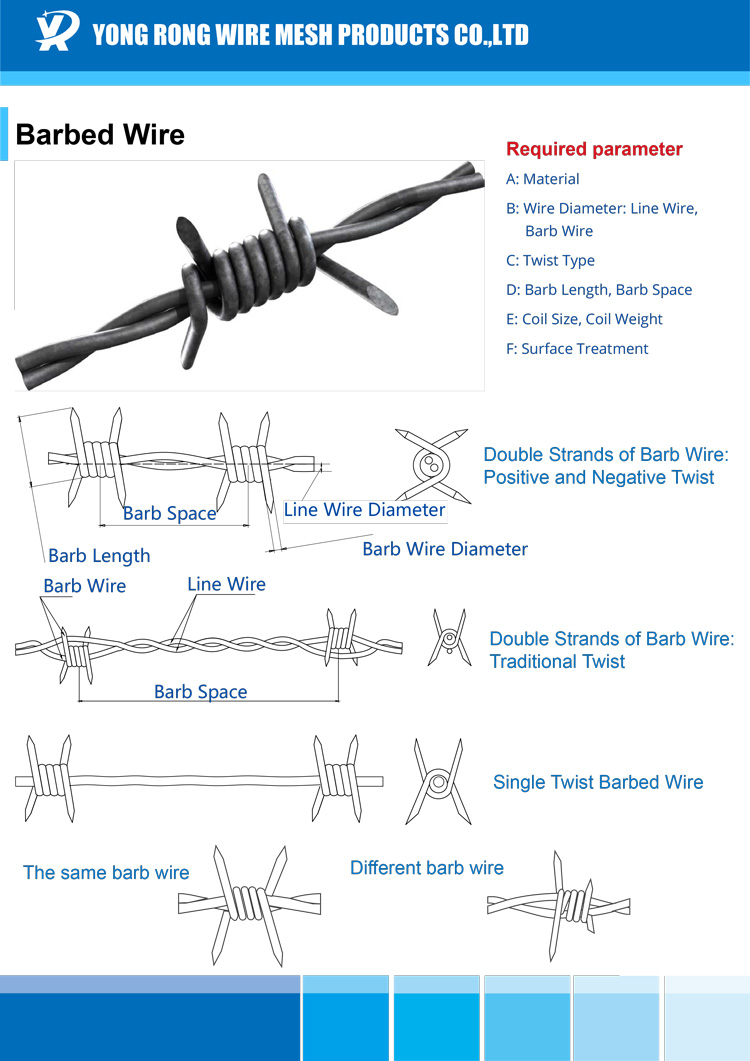

Patterns Available for Galvanized Barbed Wire:
Single Twisted Barbed Wire
Double Twisted Barbed Wire
Traditional Twisted Barbed Wire
Features: Galvanized Barbed wire offers a great protection against corrosion and oxidation caused by the atmosphere. Its high resistance allows greater spacing between the fencing posts.

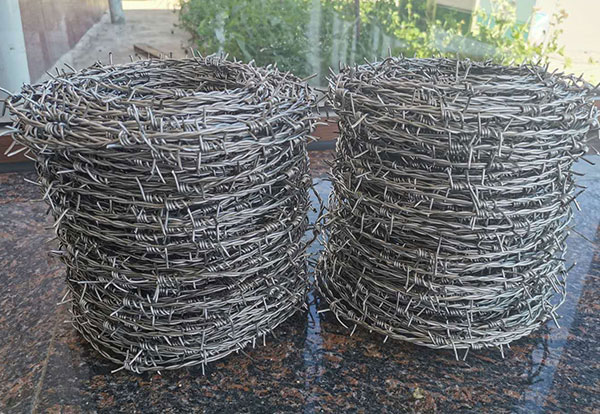

Packing: In coils. 12-25kg
Name |
Barbed wire Guage(BWG) |
Barbed wire space (cm) |
Barbed distance (cm) |
Hot dipped galvanized barbed wire |
10# x 12# |
7.5-15 |
1.5-3 |
Electrical Galvanized barbed wire |
12# x 12# |
12# x 14# |
14# x 14# |
14# x 16# |
16# x 16# |
16# x 18# |
Name |
Before painting |
After painting |
Barbed wire space (cm) |
Barbed distance (cm) |
PVC Barbed wire |
1.0mm-3.5mm |
1.4mm-4.0mm |
7.5-15 |
1.5-3 |
BWG11#-20# |
BWG8#-17# |
SWG11#-20# |
SWG8#-17# |
Painting thickness for PVC & PE 0.4mm-0.6mm |
