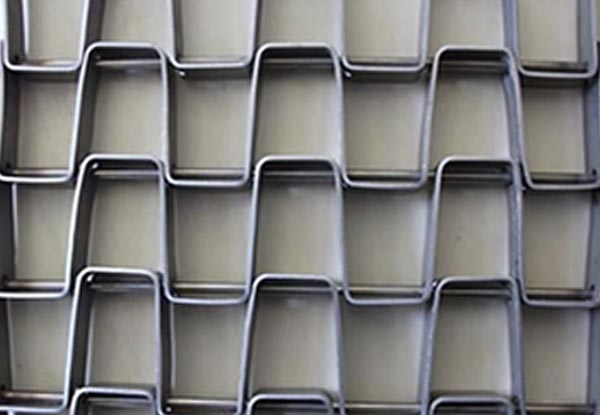

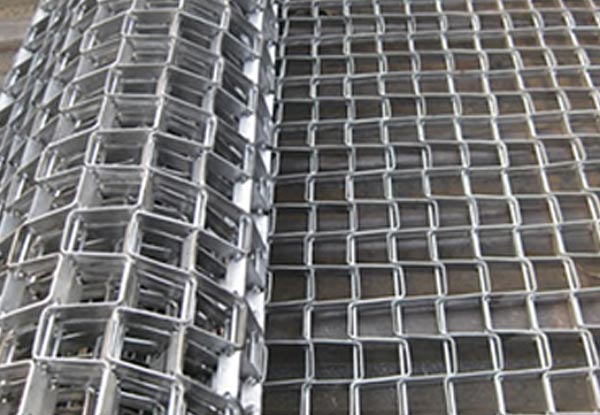

Flat wire belts, also named as honeycomb belts, is a well known traditional conveyor belt for most straight-running conveying applications. This hone comb belt features very large open area, high strength-to-weight ratio and flat carrying surface. All of these outstanding performances make it the most popular choice for baking, cooling, heating and packaging.
Constructed from formed flat strips connected by cross rods, flat wire belts have a wide variety of configurations to suit different requirements. For standard duty flat wire belting, 1" × 1" & 1/2" × 1" are frequently used, and other special specifications are available on request.
Flat wire conveyor belting has two edge styles - welded and clinched. Clinched edge is the first choice for standard duty flat wire belts, which can prevent mesh shrinkage on the rods. however, button welded edges are available.
Flat wire belting are manufactured by three common materials: low carbon galvanized steel (such as C1015), high carbon steel (such as C1050) and stainless steel T-304 or T-316. Click here for more information about the materials.
Product description:
Features & Benefits:
Typical Applications:

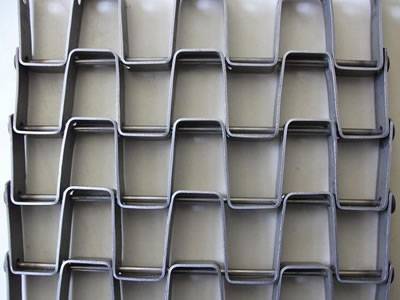

Edge styles of flat wire belts:
| Item No. | Mesh | Flat strip | Cross rod | Edge Finish | Width | |
|---|---|---|---|---|---|---|
| Min. | Max. | |||||
| inch | inch | gauge | inch | inch | ||
| SFW01 | 1×1 | 3/8 × 0.046 | 11 & 12 | Clinched edge | 4.5 | 240 |
| SFW02 | 1/2×1 | 3/8 × 0.046 | 11 & 12 | Clinched edge | 4.125 | 240 |
| SFW03 | 1/2×1 Modified | 3/8 × 0.046 | 11 & 12 | Clinched edge | 4.125 | 240 |
| SFW04 | 3/4×1 | 3/8 × 0.046 | 11 & 12 | Clinched edge | 4.5 | 240 |
| SFW05 | 1×1 | 3/8 × 0.046 | 11 & 12 | Welded edge | 3.0 | 240 |
| SFW06 | 1/2×1 | 3/8 × 0.046 | 11 & 12 | Welded edge | 3.25 | 240 |
| SFW07 | 1/2×1 Modified | 3/8 × 0.046 | 11 & 12 | Welded edge | 3.25 | 240 |
| NOTE: Please contact us if you don't find the specification for your application. | ||||||
