Galvanized wire

Galvanised Steel Wire Material: 45 65 70 72A 72B 82B 65 Mn Galvanised Steel Wire Wire Gauge: 0.7mm -

MESSAGE CONTACT US

Galvanised Steel Wire Material: 45, 65, 70, 72A, 72B, 82B, 65 Mn

Galvanised Steel Wire Wire Gauge: 0.7mm - 4.06mm

Zinc coating amount per square meter length of the galvanized wire: 20g/m2 - 300g/m2

Tensile strengh: 340--1180 N/mm2

Surface treatment: Electro/hot dipped galvanised coating

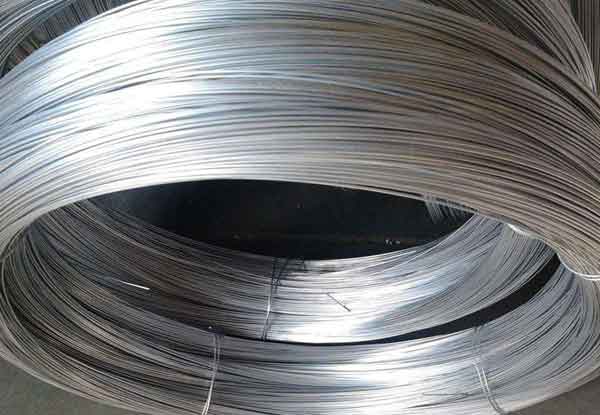

Electro Galvanised Wire

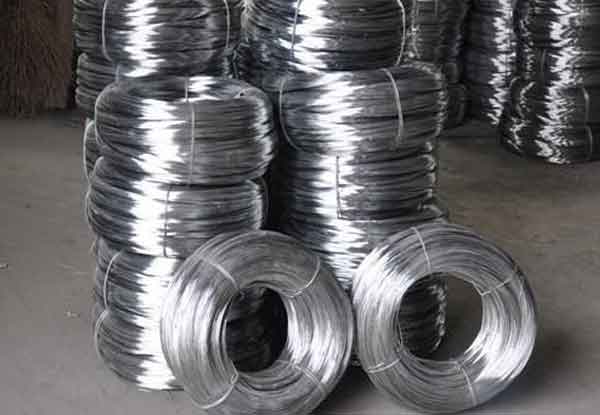

Galvanised Steel Coil Wire with Electro Coating

Galvanised steel wire can be used for construction binding, wire mesh, expressway fencing, chain link fence, handicrafts and brad nails.

Galvanised Steel Wire Production process:

Steel rod - Drawing moding - Pickling derusting - Heat diping - Chilling - Finished products

Galvanised Steel Wire Used in the rope
Galvanised Steel Wire Processed Rope

Features of our galvanized steel wire:

*Quality steel wire rod for raw material, typically is Sha Gang 72A and Baosteel 82B.

*First class zinc plate for raw material, the purity is up to 98.90%

* Wire drawing by ourselves, it can save the total cost and make the price relatively low

*Computed heat-control makes the surface of galvanized steel wire super flat and smooth

Galvanised Wire Specifications with Wire Diameter in mm and Unit Coil Weight:

Gauge	SWG in mm	BWG in mm	metric mm	Common weight/coil
8 #	4.06	4.19	4.00	50-100kgs
10#	3.25	3.40	3.50	50-100kgs
12#	2.64	2.77	2.80	50-100kgs
14#	2.03	2.11	—	50-100kgs
16#	1.63	1.65	1.65	50-100kgs
18#	1.22	1.25	1.20	5-25kgs
20#	0.91	0.89	0.90	5-25kgs
21#	0.81	0.813	0.80	5-25kgs
22#	0.71	0.711	0.70	5-25kgs
