Rod Conveyor Belt Popularly Used in Food Industry

Rod conveyor belt consists of cross rods with overlaying alternating spiral coils. It is equipped wit
MESSAGE CONTACT US

Rod conveyor belt consists of cross rods with overlaying alternating spiral coils. It is equipped with flexible u-shaped edge for side flexibility. This kind of mesh belt is especially designed for spiral or round conveyor as well as straight-running conveyor.

Flexible rod conveyor belt with alternating spiral coils.
RCB-01: Flexible rod conveyor belt.
Spiral grid belt made of stainless steel.
RCB-02: Spiral grid belt.

alternative mesh belting for extremely heavy-loading transportation. Rod and spiral alternating coils structure efficiently improve production and reduce downtime. Owing for robust construction, this rod conveyor belting need far less maintenance. Apart from these advantages, stainless steel rod conveyor belts also have excellent corrosive resistance satisfying hygiene requirements for food processing.

Rod conveyor belting is available installed with side plates to add the height of product to be transported. Cross flights are also provided to separate the products to be transferred. Besides, radius rod conveyor belt is provided on request.

Features & benefits:

  • Excellent running capabilities and can go 180 degree curves.
  • Smooth belt surface with good air circulation.
  • Can bear high pressure and stress
  • Easy to maintain and dismantle, side guards available.
  • Easy to clean
The Flexible rod conveyor belt can be made into a circle.
RCB-03: Rod conveyor belt in circle form.

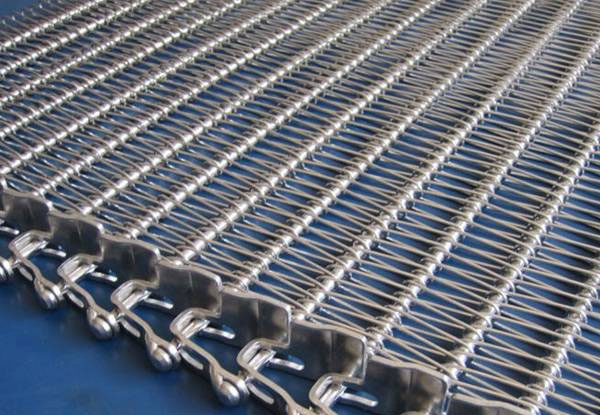

Spiral grid belt with side guards on blue background.
RCB-04: Spiral grid belt side guards available.

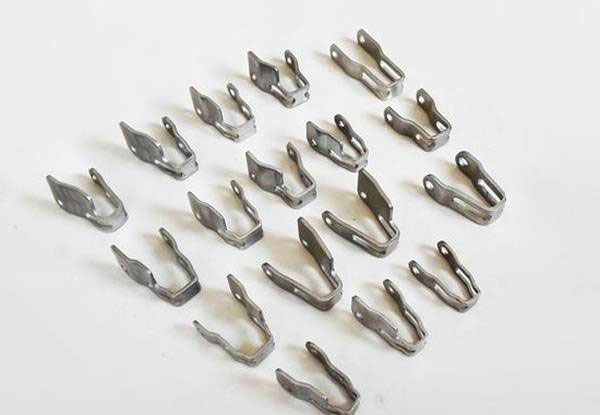

Several types of U shaped chain links on gray background.
RCB-05: Various types of U shape chain links.

Specifications:

  • Material: carbon steel, SS 201, SS 304, SS 316.
  • Cross rod pitch: 5 mm to 50.8 mm.
  • Chain side guard height: 24 mm, 26 mm, 38.1 mm.
  • Chain link thickness: 2 mm, 2.5 mm, 2.7 mm, 3.1 mm.
  • Cross rod diameter: 4 mm to 16 mm.
  • Spiral/coil wire diameter: 1.2 mm, 1.4 mm, 1.5 mm, 1.6 mm, 1.8 mm, 2 mm, 2.5 mm, 3 mm.
  • Width of conveyor belt: 200 mm to 5,000 mm.
  • Special specifications can be customized.
Rod conveyor belt drawing with detailed dimensions.
RCB-02: Rod conveyor belt drawing.
Common Specifications of Rod Conveyor Belt for Reference
Item Cross rod pitch Belt width Wire diameter Cross rod diameter U-shape link height U-shaped link width
mm m mm mm mm mm
RC01 19.05 2.2 2 5 11 28
RC02 25.4 1.7 - 2.2 2 5 11 29
RC03 25.4 2.2 3 5 11 36
RC04 25.4 1.7 - 2.2 3 5 11 41
RC05 25.4 1.7 - 2.2 3 5 11 41
Running rod conveyor belt on the machine.
RCB-07: Flexible rod conveyor belt on the machine.

Typical applications:

  • Cooking.
  • Heating.
  • Cooling.
  • Drying.
  • Drainage.
  • Freezing.
  • Transport.
