Wire Mesh Belts Maximum Air-Flow Improve Efficiency

Wire mesh belts or wire link belts are ideal metal conveyor belts for light-to-medium transfers. Up to 86% proportion of open area provides maximum air-flow through and improve efficiency in cooling, heating, draining and drying performances. Smallest diameter end rolls and drive rolls mean that even the most dedicate products will be handled gently. At the same time, non-slip positive drive eliminates the possibility of tracking problems.

WMB-01: Wire mesh belts.

Wire mesh belt uses USDA approved design and clean in place capacity make it much easier to keep the conveyor line hygienic. At the same time, this belt has numerous configurations for its great variety of wire diameters and different pitches.

Apart from straight-running wire mesh belt, radius mesh belt is provided for the conveying process around corners. Unique and tapered pitch, smallest inside turning radius and tightest level transfer make this curved wire mesh belt the perimeter choice for many corner process.

Wire link conveyor belts not only suit for common conveying process, but also for special handling requirements. For example, some conveying process needs to keep the products aligned in rows, move product up steel inclines or maintain product separation. Hence, flights throughout the belt length are manufactured. However, the number of rows of flights and spacing between each other are custom.

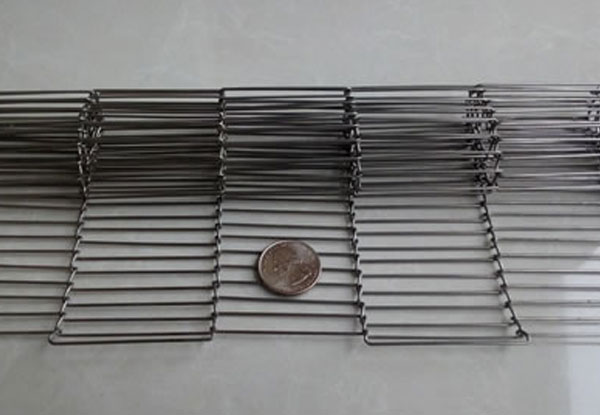

WMB-02: Wire mesh belt without flights.

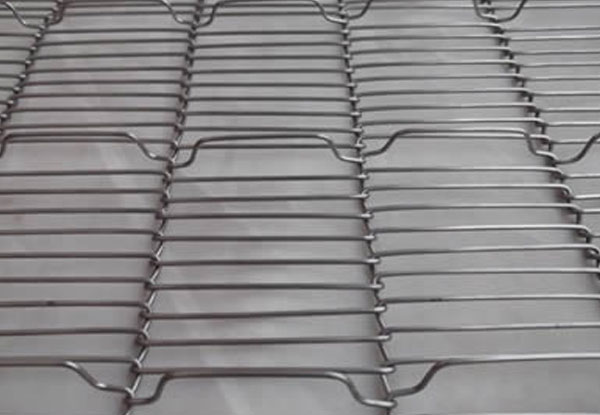

WMB-03: Wire link belting with flights at certain distance.

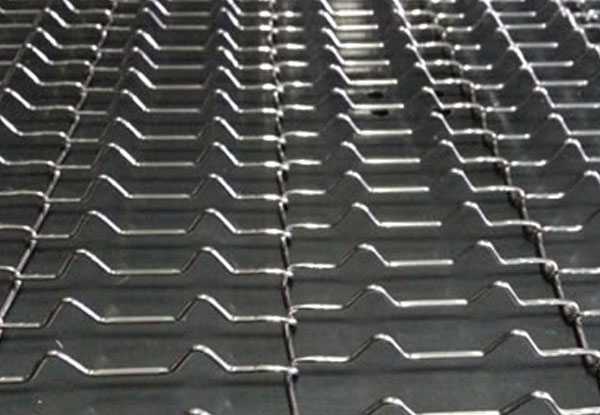

WMB-04: Continuous flights wire mesh belt.

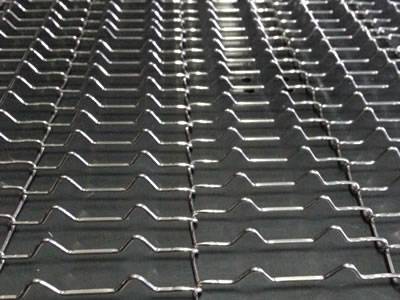

WMB-05: Wire mesh conveyor belt with points.

Specifications:

• Materials: SS 304, SS 316.
• Wire diameter: 1 mm, 1.2 mm, 1.5 mm, 1.6 mm, 1.8 mm, 2 mm, 2.3 mm, 2.35 mm.
• Pitch: 4.8 mm to 12.7 mm.
• Belt width: 200 mm to 3600 mm.
• Open area: 67.5% to 86%.

Features & benefits:

• Up to 86% open area.
• Light-to-medium duty transfer.
• Non-slip, positive drive.
• Very low belt mass saving power consumption.
• A great variety of mesh sizes.
• Straight-running or radius-running.
• Hygienic design, easy to clean.

Typical applications:

• Cooking.
• Baking.
• Freezing.
• Frying.
• Heating.
• Drainage.
• Battering.
• Enrober belts / enrober wire belts.

Edge loop styles:

WMB-06: C-shaped edge.

WMB-07: Single loop edge.

WMB-08: Double loop edge.

C-shaped loop edge reduce the ratio of catching and tangling by the belt edge.
Single loop edge is the most popular wire mesh belt edge finish. It is available for wire diameter 1.27 mm or above.
Double loop edge is supplied for enrober belts.

WMB-09: Wire mesh belts and chain sprockets

WMB-10: Wire mesh belts and chain sprockets using guide

WMB-11: Wire mesh conveyor belt wood case package.

WMB-12: A roll of wire mesh conveyor belt with points.

WMB-13: Sack food wire link conveyor belt.

WMB-14: Enrober wire belts
