Eyelink Conveyor Belts - the Premier Solution for Heavy L

Eyelink conveyor belt also called wire loop belt consists of eye-links with eye-shape at the end plat

MESSAGE CONTACT US

Eyelink conveyor belt, also called wire loop belt, consists of eye-links with eye-shape at the end, plate links and cross rods. Assemble the eye-links on to cross rods and a hinge construction is created. This construction is flexible during the conveying process. Plate links are interconnected by cross rods. The plates transfer the load to the support sections and usually be installed in rows at a regular distance. Eye-links, plate and cross rods form a module. So eyelink belt is also named as modular belt.

Eyelink belting is the solution for heavy load conveying process. It combines strength, stable carrying surface, long lasting and limitless configurations, all of which make it an ideal conveyor belt in all conveying applications. Besides, side guard plates and cross flights are available on request. Side plates is designed to control the height of the product to be conveyed.

Eyelink modular belt has four constructions - full eyelink, eyelink with spring, eyelink with rings and eyelink with underwelded wire. Owing to the multiple constructions, eyelink belting can be manufactured into thousands styles to suit different applications. For example, if you need the conveyor belt which transfer very small products, full eyelink belts may be the first concern. Click here for eyelink conveyor belting quotation form.

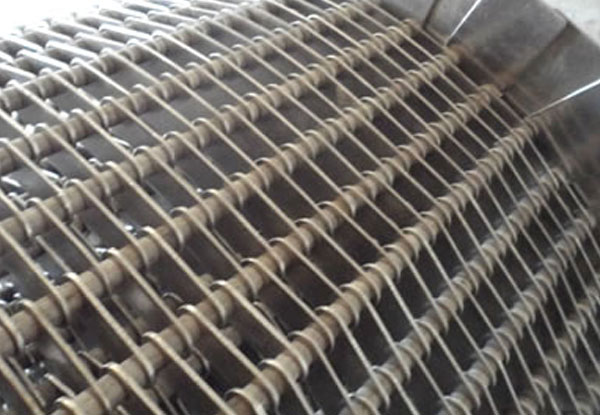

Eyelink conveyor belting flatter carrying surface for almost any product.

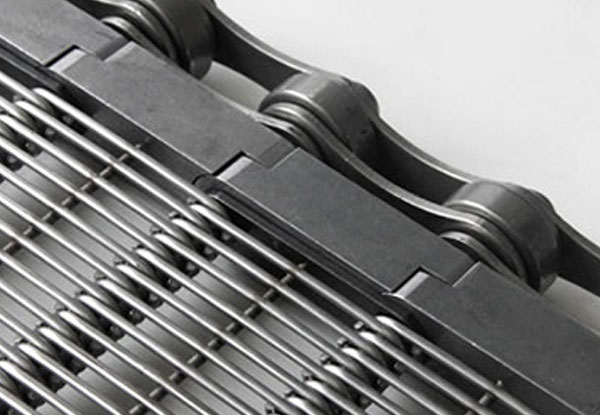

ELCB-01: Full eyelink conveyor belting with chain edge.

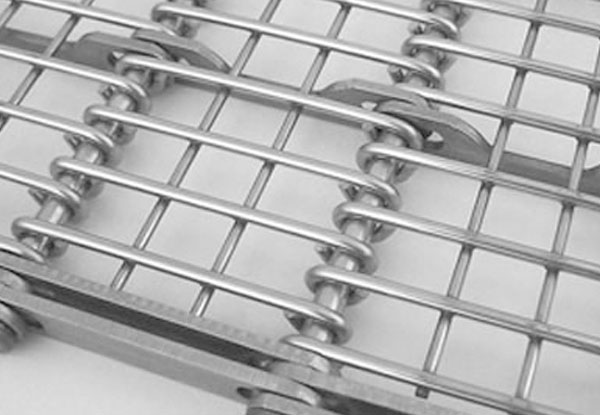

Eyelink plate conveyor belt with side plates protecting the products rolling down.

ELCB-02: Eyelink plate conveyor belt.

Construction of eyelink belt:

Full eyelink belting with opening equaling to the wire diameter.

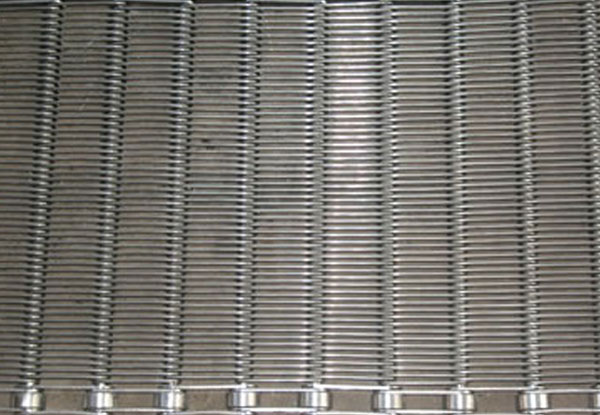

ELCB-03: Full eyelink belting.

Full eyelink conveyor belting is the standard version of eyelink belts. It is designed without spacers, which features outstanding flow-through character and flat holding surface. For a full eyelink belt, the eye-links lie against each other, and the mesh opening equal to the diameter of the wire. This kind of mesh belt is ideal for conveying small products. Given the characters above, this mesh belt is highly popular in food processing like baking.

Stainless steel eyelink belt with underwelded wire for more strength.

ELCB-04: Eyelink belt with underwelded wire.

Eyelink belting with underwelded location wire provides a great variety of openings depending on the product to be processed. One, two or three location wires can be welded. Not only does underwelded location wire improve the belt load capability, but also eliminates the potential bacteria traps under the spacers such as spring. This configuration makes the cleaning easy.

Eyelink conveyor belt with spring as its spacer for measurable spacing.

ELCB-05: Eyelink belt with spring as spacer.

Spring spacer features good shock resistance and resistance against lateral forces, because the belts are more stable for the eye-links are able to move on the cross rod. Eyelink belting with spring spacer is extensively used in heating or freezing applications.

Eyelink belt with ring spacer for bigger spacing than full eyelink.

ELCB-06: Eyelink belt with ring spacer.

Ring spacer increases the gap between the eye-links and at the same time allow for more air flow. The gap is determined by the rings. One, two or more are available depending on the application requirement.

Edge finish availability: welded edge, side chain edge.

Eyelink belt with the most popular welded edge.

ELCB-07: Welded edge.

ELCB-08: Side chain edge.

Specifications:

Material: SS 304, SS 316.
Chain pitch: 25.4 mm, 31.75 mm, 38.1 mm, 50.8 mm, 63.5 mm, 76.2 mm.
Rod diameter: 5 mm, 6 mm, 7 mm, 8 mm, 10 mm, 12 mm.
Wire diameter: 1.5 mm, 1.6 mm, 1.8 mm, 2 mm, 2.5 mm, 3 mm.
Spiral pitch: 2.4 mm to 100 mm.
Rod pitch: 25.4 mm, 31.75 mm, 38.1 mm, 50.8 mm, 63.5 mm, 76.2 mm.
Belt width: 200 mm to 6,000 mm.

Features & benefits:

Heavy-duty conveying requirements.
Flat carrying surface.
Multiple drive options.
Multiple spacers options.
Variable wire spacing.
Excellent air and fluid drainage.
Custom specification for special applications.
Numerous configuration options.
Cross flights and side guards provided.
Reduce downtime and maintenance.

Typical applications:

Baking.
Cooking.
Cooling.
Heating.
Drying.
Freezing.
Blanching.
Washing.
Frying
Sorting.
Grading.
Loading.
Elevating.

Specification for eyelink belt without spacers
Item No.	Belt Pitch	Wire Dia.	Cross Rod Dia.	Item No.	Belt Pitch	Wire Dia.	Cross Rod Dia.
Item No.	mm	mm	mm	Item No.	mm	mm	mm
ECB01	15.875	1.80	3.20	ECB015	50.00	3.00	5.00
ECB02	25.00	2.00	5.00	ECB016	50.80	1.60	8.00
ECB03	25.40	2.00	5.00	ECB017	50.80	1.60	6.00
ECB04	30.00	1.60	4.00	ECB018	50.80	2.00	8.00
ECB05	30.00	2.00	4.00	ECB019	50.80	2.50	8.00
ECB06	30.00	2.00	5.00	ECB020	50.80	2.50	5.00
ECB07	30.00	2.00	7.00	ECB021	50.80	3.00	5.00
ECB08	30.00	2.00	8.00	ECB022	50.80	4.00	7.00
ECB09	31.75	2.00	5.00	ECB023	60.00	2.00	5.00
ECB010	50.00	1.40	5.00	ECB024	60.00	2.50	5.00
ECB011	50.00	1.60	5.00	ECB025	70.00	4.00	7.00
ECB012	50.00	2.00	5.00	ECB026	75.00	2.50	5.00
ECB013	50.00	2.50	6.00	ECB027	75.00	2.50	8.00
ECB014	50.00	2.50	8.00	ECB028	100.00	3.00	8.00

Specification for eyelink belt with under welded wire spacing
Item No.	Belt Pitch	Wire Diameter	Cross Rod Diameter	Minimum gap spacing	Gap in steps of	Maximum No. of welded wires
Item No.	mm	mm	mm	mm	mm	mm
EBWB01	15.88	1.80	3.20	2.00	0.10	1
EBWB02	25.00	2.00	5.00	2.30	0.10	2
EBWB03	25.40	2.00	5.00	2.30	0.10	2
EBWB04	30.00	2.00	4.00	2.30	0.10	2
EBWB05	30.00	2.00	5.00	2.30	0.10	2
EBWB06	50.00	2.00	5.00	2.30	0.10	3
EBWB07	50.00	2.50	5.00	2.80	0.10	3
EBWB08	50.00	2.50	6.00	2.80	0.10	3
EBWB09	50.80	2.50	8.00	2.80	0.10	3
EBWB010	50.80	3.00	8.00	3.30	0.10	3
EBWB011	75.00	2.50	5.00	2.80	0.10	3
EBWB012	75.00	2.50	8.00	2.80	0.10	3

Specifications for eyelink belt with rings as spacers
Item No.	Belt Pitch	Wire Diameter	Cross rod Diameter	Minimum Gap Spacing	Increased by
Item No.	mm	mm	mm	mm	mm
EBR01	25.00	2.00	5.00	4.00	2.00
EBR02	25.40	2.00	5.00	4.00	2.00
EBR03	30.00	2.00	4.00	4.00	2.00
EBR04	30.00	2.00	5.00	4.00	2.00
EBR05	31.75	2.00	5.00	4.00	2.00
EBR06	50.00	2.00	5.00	4.00	2.00
EBR07	50.00	2.50	5.00	5.00	2.50
EBR08	50.00	2.50	6.00	5.00	2.50
EBR09	50.80	2.50	6.00	5.00	2.50
EBR010	50.80	2.50	8.00	5.00	2.50
EBR011	50.80	4.00	8.00	8.00	4.00
EBR012	60.00	2.00	5.00	4.00	2.00
EBR013	60.00	2.50	5.00	5.00	2.50
EBR014	75.00	2.50	5.00	5.00	2.50
EBR015	75.00	2.50	8.00	5.00	2.50

Specification for eyelink belt with springs as spacers
Item No.	Belt Pitch	Wire Diameter	Cross Rod Diameter	Min. gap spacing	Gap spacing also available in these widths
Item No.	mm	mm	mm	mm	mm
EBS01	25.00	2.00	5.00	7.00	8.0	10.0	12.0	15.0	17.5	20.0
EBS02	25.400	2.00	5.00	7.00	8.0	10.0	12.0	15.0	17.5	20.0
EBS03	30.000	2.00	4.00	7.00	8.0	10.0	12.0	-	-	20.0
EBS04	30.000	2.00	5.00	7.00	8.0	10.0	12.0	15.0	17.5	20.0
EBS05	31.750	2.00	5.00	7.00	8.0	10.0	12.0	15.0	17.5	20.0
EBS06	50.000	2.00	5.00	7.00	8.0	10.0	12.0	15.0	17.5	20.0
EBS07	50.000	2.50	5.00	7.50	8.0	10.0	12.0	15.0	17.5	20.0
EBS08	50.000	2.50	6.00	7.50	-	-	-	-	-	20.0
EBS09	50.000	3.00	8.00	10.50	-	-	-	15.5	-	20.0
EBS010	50.800	2.00	6.00	7.00	-	-	-	-	-	-
EBS011	50.800	2.00	8.00	8.00	-	-	-	-	-	-
EBS012	50.800	2.50	6.00	7.50	-	-	-	-	-	20.0
EBS013	50.800	2.50	8.00	10.00	-	-	-	15.0	-	20.0
EBS014	50.800	3.00	8.00	10.50	-	-	-	15.5	-	20.0
EBS015	50.800	4.00	8.00	12.00	-	-	-	-	-	-
EBS016	60.000	2.50	5.00	7.00	8.0	10.0	12.0	15.0	17.5	20.0
EBS017	60.000	2.50	5.00	7.50	8.5	10.0	12.0	15.0	17.5	20.0
EBS018	70.000	4.00	7.00	12.00	-	-	-	-	-	-
EBS019	75.000	2.50	5.00	7.50	8.5	10.0	12.0	15.0	17.5	20.0
EBS020	75.000	2.50	8.00	10.00	-	10.0	-	15.0	-	20.0
EBS021	100.00	3.00	8.00	10.50	-	10.5	-	15.5	-	20.0
