Heavy Duty Flat Wire Belts - Premier Choice for Heavy Loadin

Heavy duty flat wire belts has all the characteristics of standard duty belts except heavier cross rods and thicker flat strip. 1/2" wide × 0.062" thick flat strip and 6 gauge connector rod gives the belt about 2.5 times strength than the standard one. Hence, it's the choice for heavy duty conveying system.

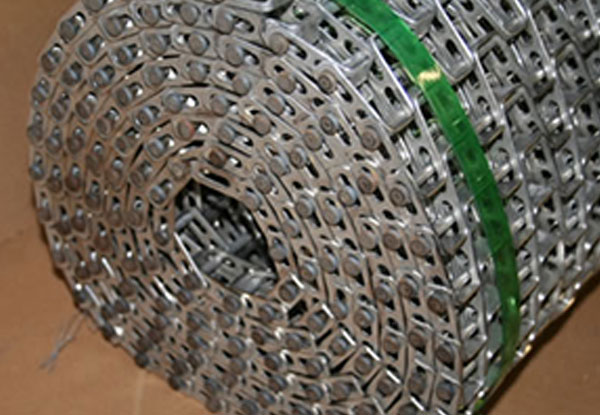

HFWB-01: Heavy duty flat wire belt.

Product description:

• Item: Heavy duty flat wire belts.
• Flat strip: 1/2" wide × 0.062" thick, round edge.
• Cross rod: 6 gauge, high tensile strength.
• Material available:
  • Low carbon galvanized steel C1015.
  • C1050 high carbon steel.
  • T-304 stainless steel.
  • T-306 stainless steel.
• Specifications: see the table below.

Features & Benefits:

• 2.5 times stronger than standard duty flat wire belt.
• Straight-running belt.
• High strength-to-weight ratio.
• Positive-driving belt.
• Welded button edge or clinched edge.
• Flat carrying surface.
• Easy to clean and to install.
• Wide range of aperture configurations.
• Very large open area.

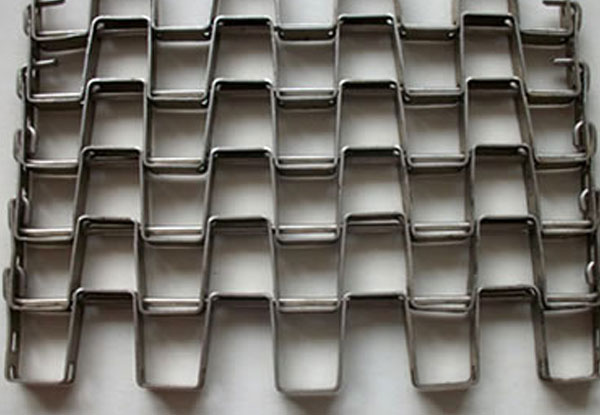

HFWB-02: Heavy duty flat wire belt with welded edge.

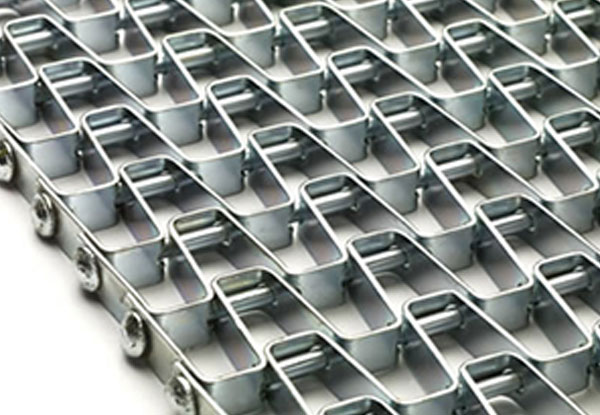

HFWB-03: Heavy duty flat wire belt with clinched edge.

Typical Applications:

• Cooking.
• Heating.
• Sieving.
• Drying.
• Sorting.
• Ovens.
• Washing.
• Dewatering.
• Drainage.
• Breading.
• Food baking, cooling and freezing.
• Chemical industry.
• Annealing.

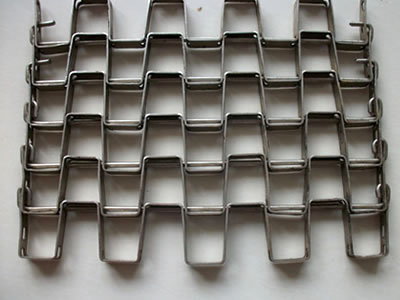

HFWB-04: Flat wire conveyor belt package.

HFWB-05: Flat wire belting conveyor.
