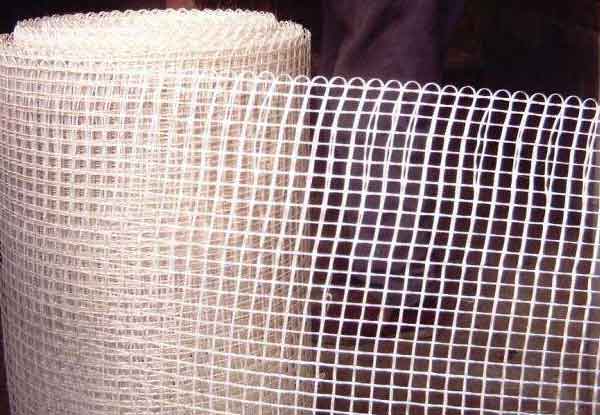

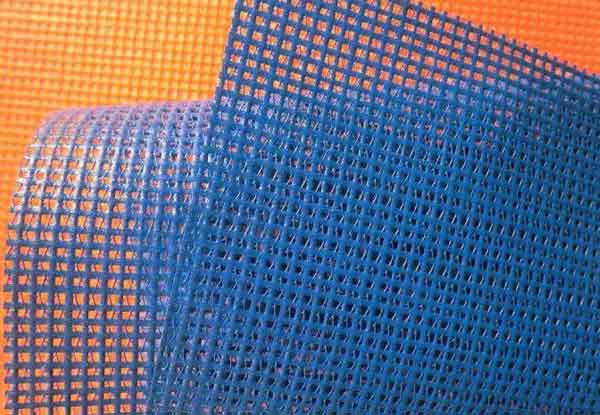

Fiberglass mesh



Fiberglass mesh





1.Specifications of fiberglass mesh


1). Mesh: 5mmx5mm, 4mmx4mm, 3mmx3mm.



2). Weight g/m2: 45--160g



3). Length/roll: 50 m, 100or 200m.



4). Width/roll: 1 or 2m.



5). Color: white, blue, green or other color.



Specifications can be made as customers' specific requirement





2.Useage:



1).75g / m2 mesh fabric used in the reinforcement of thin slurry, to eliminate small cracks and scattered throughout the surface pressure.





2).110g / m2 mesh cloth is widely used in indoor and outdoor walls, prevent the various materials (such as brick, light wood, prefabricated structure) of treatment or caused by a variety of expansion coefficient of wall crack and break .





3). 145g/m2 mesh fabric used in the wall and be mixed in various materials (such as brick, light wood, prefabricated structures), to prevent cracking and scatter the whole surface pressure, especially in the external wall insulation system (EIFS ).





4). 160g / m2 mesh fabric used in insulator layer of reinforcement in the mortar, through shrinkage and temperature changes by providing a space to maintain movement between the layers, prevent crack and rupture due to shrinkage or temperature change.





Item Number	Yarn(Tex)		Mesh(mm)		Density Count/25mm		Finish  Weight(g/m2)	Tensile                Strength × 20cm		Woven Structure	Content   of resin%(≥)
	Warp	Weft	Warp	Weft	Warp	Weft		Warp	Weft
5x5-70	45×2	200	5	5	5	5	70	550	850	Leno	16
5x5-80	67×2	200	5	5	5	5	80	700	850	Leno	16
5x5-90	67×2	250	5	5	5	5	90	700	1050	Leno	16
5x5-110	100×2	250	5	5	5	5	110	800	1050	Leno	16
5x5-125	134×2	250	5	5	5	5	125	1200	1300	Leno	16
5x5-135	134×2	300	5	5	5	5	135	1300	1400	Leno	16
4x4-135	100×2	250	4	4	6	6	135	1000	1300	Leno	16
5x5-145	134×2	360	5	5	5	5	145	1200	1300	Leno	16
4x5-150	134×2	300	4	5	6	5	150	1300	1300	Leno	16
5x5-160	134×2	400	5	5	5	5	160	1450	1600	Leno	16
4x4-160	134×2	300	4	4	6	6	160	1550	1650	Leno	16
4x5-165	134×2	350	4	5	6	5	165	1300	1300	Leno	16
